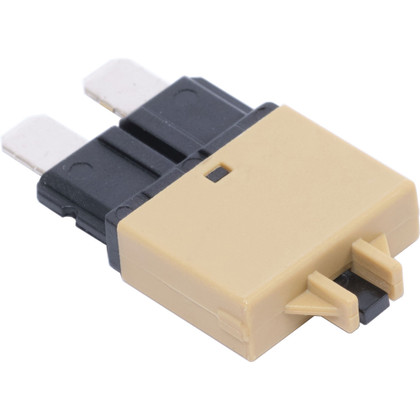

CAD DrawingCAD Drawing 2CAD Drawing 37062 ATO/ATC-Style Low Profile Circuit Breaker - 2-Pack - 5 Amp
Use a manually resettable circuit breaker instead of an ATO or ATC fuse.
Features:
- Drop in replacement for ATO and ATC blade style fuses
- Manual push button reset complies with ABYC circuit protection requirements
- Compatible with Water-Resistant ST-Blade Fuse Block with cover secured
- Compatible with all other ST-Blade Fuse blocks without cover
- Amperage: 5 Amps
- Color: Light Brown
- Maximum Voltage: 28V DC
- Circuit Breaker Type: Thermal Trip, Manual Reset
- Interrupt Capacity: 2000A@28V DC
- Minimum Operating Temperature: -30° C
- Maximum Operating Temperature: 77° C
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Blue Sea Systems
Manufacturer Part No : 7062
UPC : 632085070625
