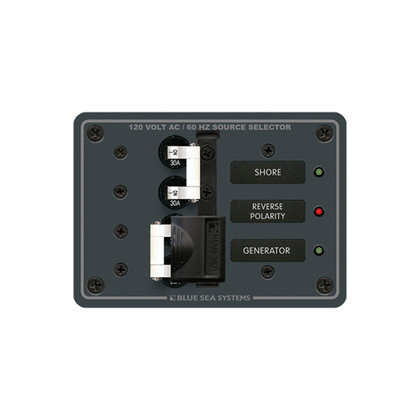

CAD DrawingCAD Drawing 2CAD Drawing 38032 AC Toggle Source Selector 120V AC - 30AMP - White Switches
Features:
- Double pole AC main circuit breakers with installed lockout slide
- Prevents connecting both AC sources simultaneously
- Maximum panel amperage - 50 Amperes
- Red reverse polarity indicating LED
- All hot, neutral and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
Specifications:
- Source Selection: 2
- Nominal Voltage: 120v AC
- Height: 3.75"
- Width: 5.25"
Included:
- (2) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A
- (1) 8031 Basic AC Panel Label Set - 30 Labels
- (2) 8034 LED - 120v AC Green
- (1) 8066 LED - 120v AC Red
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Blue Sea Systems
Manufacturer Part No : 8032
UPC : 632085080327
