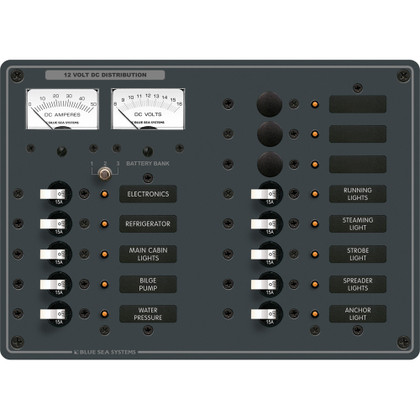

CAD DrawingCAD Drawing 2CAD Drawing 38068 DC 13 Position Toggle Branch Circuit Breaker Panel - White Switches
Features:
- All positive, negative and grounding buses installed, fully pre-wired
- Includes set of 30 common DC labels
- Label backlighting pre-installed
- All LEDs installed
- Detailed installation instructions and cutout template
- 8028, 8-16 Volt DC Micro Voltmeter
- 8041, 0-50 Amp DC Micro Ammeter
- 10 15A Single Pole Circuit Breakers
- Toggle Branch Circuit Breaker Panel
Specifications:
- Positions: 13
- Nominal Voltage: 12v DC
- Maximum Amperage: 50A
- Height: 7.5"
- Width: 10.5"
- Depth: 3"
- Weight: 4.2 lbs
Included:
- (10) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
- (1) 8030 Basic DC Panel Label Set - 30 Labels
- (1) 8028 DC Micro Voltmeter - 8 to 16v DC (Meter)
- (1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Blue Sea Systems
Manufacturer Part No : 8068
UPC : 632085080686
