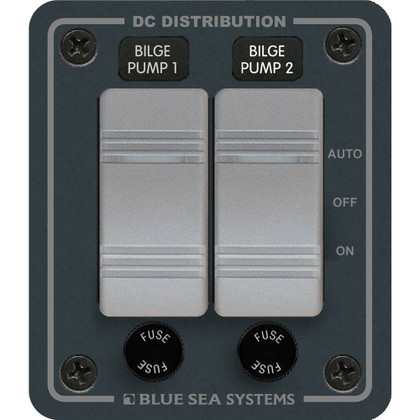

CAD DrawingCAD Drawing 2CAD Drawing 38664 Contura 2 Bilge Pump Control Panel
Blue Sea Systems water resistant 12/24 Volt DC Bilge Pump control panel with Contura rocker switch and fuse holder for fuses up to 20amp
Features:
- Designed for 12 or 24V DC systems
- ON - OFF - AUTO Contura Switch
- Watertight mounting gasket
- Fuse holders accept commonly available AGC and MDL glass fuses
- "ON” LED embedded in switch indicates the pump is running
- Completely wired and ready to install
Specifications:
- Weatherproof - Water Resistant
- No. of Bilge Pumps - two (2)
- Nominal Voltage - 12/24V
- Panel Cumulative Rating - 45A
- Switch Rating: 20A @ 12V DC / 15A @ 24V DC
- Dimensions (H x W x D) - 3.75" x 3.34" x 3"
In the Box:
- Panel Mount AGC/MDL Fuse Holder (P/N 5021) x two (2)
- Contura III Switch SPDT - On - OFF - (ON) (P/N 7944) x two (2)
- Black 60 Label Set (P/N 8214)
*Sold as an Individual
Manufacturer : Blue Sea Systems
Manufacturer Part No : 8664
