m-Series Dual Circuit Plus PN 6011
(1) 100A C-Series Flat Rocker Circuit Breaker
(2) 15A Push Button Thermal Circuit Breakers

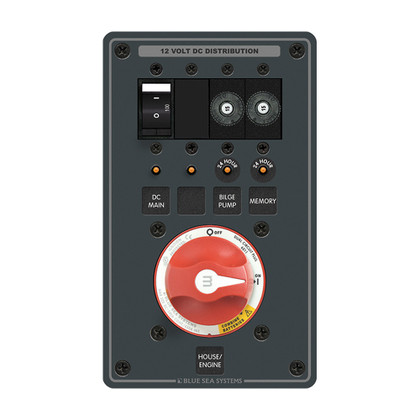

Product : BLUE SEA 8686 PANEL DC BATTERY MANAGEMENT
Manufacturer : Blue Sea Systems
Manufacturer Part No : 8686
UPC : 632085086862
Product : BLUE SEA 8686 PANEL DC BATTERY MANAGEMENT
(1) 100A C-Series Flat Rocker Circuit Breaker
(2) 15A Push Button Thermal Circuit Breakers
- Designed for twin engine configurations
- Provides 24 hour circuit protection
- Provides main DC circuit protection in addition to high ampere load protection
- Protects electronics from sags and spikes caused by engine cranking
- Allows emergency cross connect between isolated battery banks
- Isolates the Engine circuit from the House circuit
- Simplifies battery switch operation
- Allows independent battery discharge
- Addition of an Automatic Charging Relay automates charging both batteries
- Includes 4218 - Square Format Labels and 4140 - 24 Hour Round Labels
