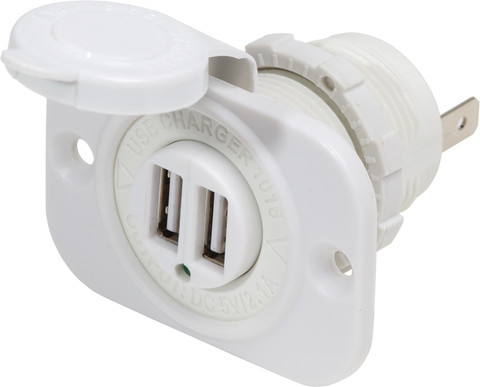

CAD DrawingCAD Drawing 2CAD Drawing 3Blue Sea Systems White 12/24V Dual USB 2.1A Charger Port
Model: 1016200-BSS- Fits in same mounting hole as a traditional 12 Volt outlet
- Compatible with most mobile devices including Apple® products
- Protective dust cap with tether keeps dust and spray from shortening the life of the charger
- Conformal coated circuit board to stand up to the harsh marine environment
- 2A Supply fuse is not included
Easy to install in existing 12V DC socket hole providing convenient access for charging mobile devices
Charge two mobile devices on the go
Specifications| Maximum Output Current | 2.1A DC (total) |
| Input Voltage | 12V/24V |
| Output Voltage | 5V DC +/- 5% |
| Cut Out Dimensions | 1 1?8 in (28.58 mm) dia. Hole |
| Input Voltage Range | 9-32V |
| Parasitic Current Draw | 15mA |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Thermal Overload Protection | Yes |
| USB | 2.0 |
