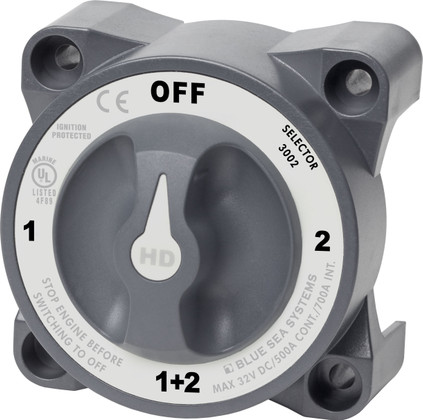

Blue Sea Hd-series Battery 4 Position 500a

Blue Sea Hd-series Battery 4 Position 500a

No reviews yet Write a Review
$78.40
SKU:
WTBSS3002
UPC:
632085030025
Weight:
0.62 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Blue Sea 3000 500A Battery Selector 4 Position Swiitch

Model: 3002-BSS
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Accepts up to 4/0 AWG battery cables
  • Studs accepts 1/2"" (M12) ring terminals
  • 7/8"" (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Fits most Perko and Guest low amperage battery switch hole patterns
  • Case design allows surface, rear, or front panel mounting options
  • Tactile indicator conveys knob position by feel
  • Waterproof — rated IP66 from water projected in powerful jets
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Make-before-break contact design allows switching between battery banks without power interruption
Specifications
Switch TypeSelector 4 Position
ColorGrey
Switch Positions4
Battery CombineYes
Alternator Field DisconnectNo
Maximum Voltage32V DC
Terminal Stud Torque220 in-lb (24.86 Nm)
Continuous Rating500A
Intermittent Rating700A (5 min)
Cranking Rating 30 sec1600A
Battery Inputs2
Cable Clearance For 4/0 AWG Cables1.10in (27.94 mm)
Cable Quantity to Meet RatingsTwo Cables / Terminal
Cable Size to Meet Ratings4/0 AWG (120mm )
Mounting HolesAccept 1/4"" (M6) Screw
Terminal Stud Size1/2"" (M12)
