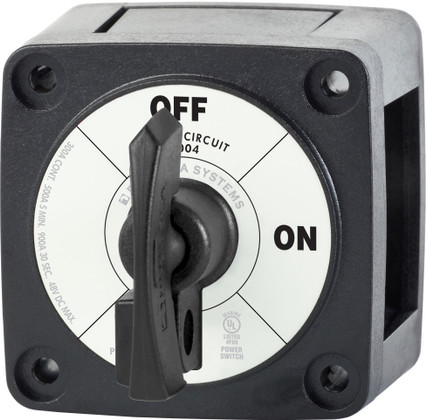

CAD DrawingCAD Drawing 2CAD Drawing 3Blue Sea Systems Single Circuit ON-OFF with Locking Key - Black
Model: 6004200-BSS- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8"" (M10) ring terminals
- 7/8"" (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction
- Case design allows surface, rear, or front panel mounting options
- Waterproof — rated IP66 from water projected in powerful jets
- One-piece stainless flange nuts ensure safe and secure connections
- Breakout tabs allow wire access in any direction
300 Amps continuous rating for outboards and small gasoline or diesel engines
Specifications| Switch Type | Single Circuit ON-OFF |
| Color | Black |
| Maximum Voltage | 48V DC |
| Stud Size | 3/8"" |
| Continuous Rating | 300A |
| Intermittent Rating | 500A |
| Cranking Rating 30 sec | 900A |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
