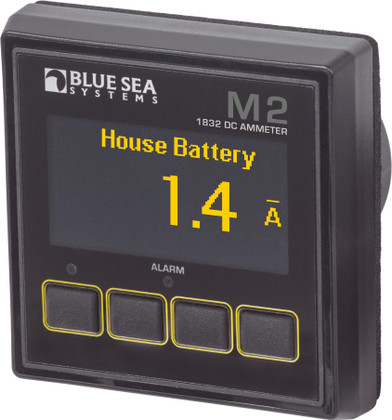

CAD DrawingCAD Drawing 2CAD Drawing 3Blue Sea Systems M2 DC Ammeter
Model: 1832-BSS- Auto-dimming, bright OLED display is easy to read
- Easy to adjust
- 80dB alarm on all models
- Isolated MOSFET relay
Monitors DC Amperage with large, bright display. Accurately measure and monitor the amperage of your DC system (measures 2 circuits). Supports programmable shunt ratios.
Specifications| Function | to 5000A |
| Input Voltage | 7-70V DC |
| Alarms | High Current |
| Current Range | -500 to 500A |
| Display Size | 55mm x 28mm |
| Maximum Power Consumption | 1.00 Watt |
| Minimum Power Consumption | 0.3 Watt |
| Weight | 4.00lb (1.81 kg) |
What's in the Box:
- M2 Ammeter Head Unit
- Surface Mount Bezel and Sea
- Surface Mount Gasket
- Surface Mount Cover
- Flat Mount Beze
- Flat Mount Clamp
- Mounting Ring
- Mounting Nut
- Shunt
- Connectors
- Screwdriver
