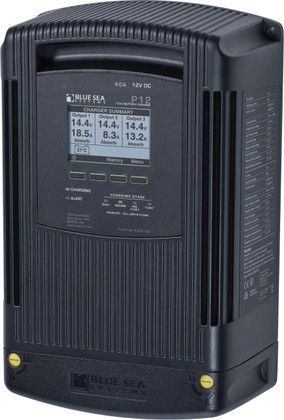

Blue Sea P12 Battery Charger 12v Output 120/230v Input 40amp 3 Bank

Blue Sea P12 Battery Charger 12v Output 120/230v Input 40amp 3 Bank

No reviews yet Write a Review
$745.30
SKU:
WTBSS7532
UPC:
632085075323
Weight:
12.00 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Blue Sea Systems P12 40A 12vDC Battery Charger

Model: 7532-BSS
  • Rugged, finned aluminum case
  • Rugged, finned aluminum case
  • Power factor corrected for efficient use of AC
  • Intuitive diagnostic screens
  • User defined charge profiles and customizable settings
  • Provides charging for up to three battery banks
  • Large, bright display
  • Multi-language: English, French, German, Italian, Spanish
  • Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
  • Battery Temperature Compensation - adjusts charge voltage based on battery temperature
  • AC over and under voltage shut down and automatic restart
  • Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
  • DC over voltage and reverse polarity protection
  • Surge and short circuit protection
Specifications
Total Output Current40A
Input AC Current7.5A @ 100V A
Maximum Output Voltage16V DC
Nominal Voltage12V DC
Ignition ProtectedYes
Number of Outputs1 negative
3 positive
Stud SizeM6
Universal AC Input Voltage115-230V AC
AC Input Frequency45-65Hz
Output Voltage Accuracy0.05V
Typical Float Voltage13.5V DC
Maximum Operating Temperature70° C
Minimum Storage Temperature-30° C
Maximum Storage Temperature80° C
Battery TypesAGM
Flooded Lead Acid
Gel
TPPL
Recommended for Battery Bank Sizes330Ah Maximum
60Ah Minimum
Screw Terminal Torque10 in-lb (1.13 Nm) M3
15 in-lb (1.69 Nm) M4
Stud Torque80 in-lb (9.04 Nm)
Dimension H x W x D13.03in x 8.46in x 3.66in
Warranty5 Year

What's in the Box:
  • P12 40A Charger
  • Mounting hardware
  • Ac Strain Releif
  • DC Strain relief
  • Temperaur Sensor
  • Dielectric Grease
