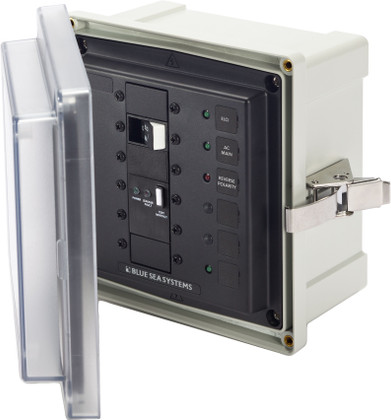

CAD DrawingCAD Drawing 2CAD Drawing 3Blue Sea SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 blank circuit position
Model: 3119-BSS- Includes one 120/240V AC / 50A ELCI Main and one blank position
- Blank apertures for custom breaker loading
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
- Stainless steel mounting hardware included
- Includes waterproof glands
- LED lights for back lighting and ON indication
Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet
Specifications| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Cover Screws and Hardware | 10-32 Stainless Steel |
| Enclosure Size | 6.0"" x 6.0"" x 4.0"" |
| Exterior Overall Dimensions | 7.6"" x 7.4"" x 4.7"" |
| Mounting Hardware | Mounting Hardware |
| Weight | 7.00lb (3.18 kg) |
What's in the Box:
- SMS Panel Enclosure
- ELCI Main 120/240V, 50A, 30mA, 3104
- small wire glands, 3124 x 2
- medium wire gland, 3125
- large wire glands, 3126 x 2
- green "ON" indicating 120V AC LEDs, 8034 x 3
- red "Reverse Polarity" indicating 120V AC LED, 8066
- LED plugs x 3
- circuit breaker mounting screws x 12
- backlit circuit label positions x 4
- AC Main label
- Reverse Polarity label
- ELCI label
- Basic AC labels, 4206
- Panel Voltage ID label-120V/240V AC
