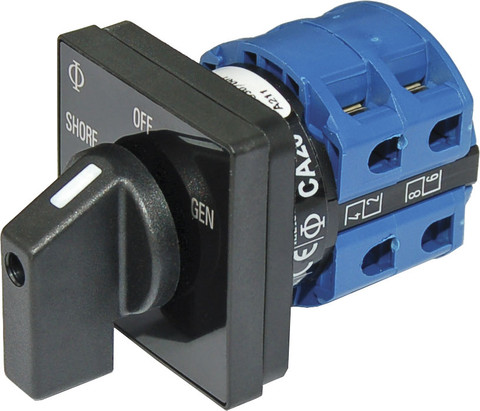

CAD DrawingCAD Drawing 2CAD Drawing 3Blue Sea Systems AC Rotary Switch - OFF + 2 Positions 120V AC 30A
Model: 9009-BSS- Switches 2 - 120 or 230 Volt AC sources
- Compact solution when circuit protection is provided elsewhere
- Allows connecting one of two different AC sources to one circuit
- Mounts in panels up to 0.16"" (4.00mm) thick
- Mounts in panels up to 0.16"" (4.00mm) thick
- Intuitive function - One hand operation
- UL listed
| Positions | 2 + OFF |
| Source Selection | 2 |
| Nominal Voltage | 120v |
| Poles | 2 |
| Load Circuits Out | 1 |
| Maximum Amperage Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application. | 30A |
| Maximum Voltage | 600V AC |
| Source In | 2 |
| Dimensions hxwhd | 1.89in x 1.89in x 1.91in |
