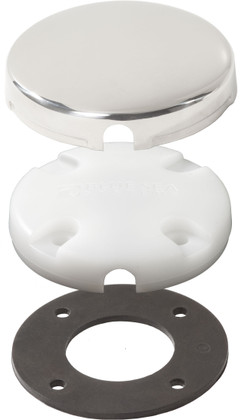

CAD DrawingCAD Drawing 2CAD Drawing 3Blue Sea Systems Side Entry CableClam with Stainless Steel Dress Cap
Model: 1007-100BSS- Simple one-piece design for easy side mount installations
- Low profile, contoured edge reduces the risk of tangling lines
- A polished stainless steel dress cap conceals mounting hardware, matches other deck hardware and offers protection from UV
- Includes all fasteners
- For use above the waterline only
Provides a water resistant side entry for antenna cables without requiring removal of the factory installed connector. Stainless steel dress cap conceals mounting hardware and matches stainless steel deck fittings.
Specifications| Max Cable Diameter | 0.28in (7.11 mm) |
| Max Connector Diameter | 1in (25.4 mm) |
| Dress Cap Material | 316 Stainless Steel |
| Ring Material | UV-Stabilized Thermoplastic |
| Seal Material | UV-Stabilized Buna-N Rubber |
| Weight | 0.45lb (0.2 kg) |
