Blue Sea St Clb Circuit Breaker Block - 12 Position With Negative Bus

Blue Sea St Clb Circuit Breaker Block - 12 Position With Negative Bus

No reviews yet Write a Review
$87.59
SKU:
WTBSS5054
UPC:
632085050542
Weight:
1.50 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

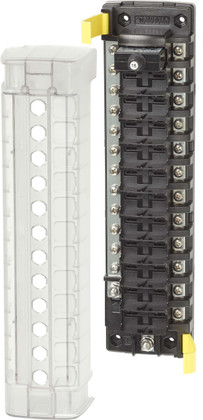

Blue Sea ST CLB Circuit Breaker Block - 12 Position with Negative Bus

Model: 5054-BSS
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover
  • Accepts square labels

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

The ST CLB Circuit Breaker Block offers flexible resettable circuit protection for 12 circuits in a surface mount block that is easy to mount in a dry and protected location. A natural companion for waterproof switching is the new WD Switch Only Panel, that will keep circuits protected from spray and offer integrated switch guards to reduce the risk of accidental switching.

Specifications
Circuits12
Maximum Amperage32A (per circuit)
40A (per jumped circuit group)
Maximum Voltage32V DC
Source Common Source
Mounting Centers 10.13in (257.3 mm)
