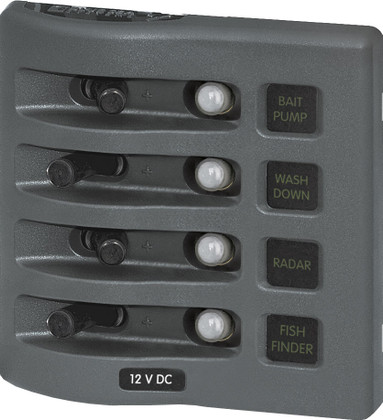

CAD DrawingCAD Drawing 2CAD Drawing 3Blue Sea Systems Weather Deck 12V DC Waterproof Circuit Breaker Panel - Gray 4 Positions
Model: 4374-BSS- Rated IP67-temporary immersion for 30 minutes
- Designed for flybridge and open cockpit applications
- Independent label backlighting allows switching and dimming
- Compatible with all Blue Sea Systems Digital Dimmers
- Each panel can be mounted in four different orientations
- Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.
| Weatherproof | Waterproof |
| Positions | 4 |
| Nominal Voltage | 12V DC 24V DC |
| Circuit Protection | Circuit Breaker |
| Maximum Amperage | 15A @ 12V DC (per circuit) 9A @ 24V DC (per circuit) |
| Panel Cumulative Rating | 45A |
| Backlit Label | Green LED |
| Backlighting Amperage | 10mA /Illuminated Circuit |
| Backlighting Voltage | 12 or 24V DC |
| Material | Reinforced Polycarbonate |
| Dimensions | 4.3"" H x 4.25"" W x 3.5""D |
