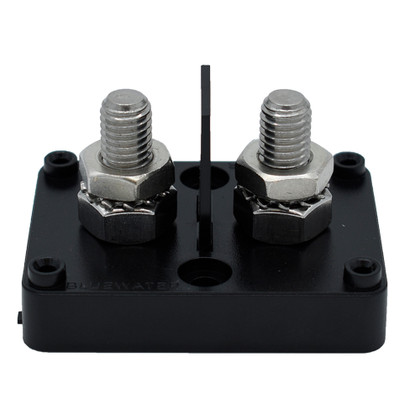

CAD DrawingCAD Drawing 2CAD Drawing 32 Position Bus/Base - Only 10mm
This heavy-duty dual stud busbar features two 3/8” studs for high-current connections. It supports large cable lugs and is ideal for linking batteries, power inverters, or distribution panels.
The corrosion-resistant construction ensures long-lasting performance in harsh marine or off-road environments. This busbar offers a reliable solution for compact yet powerful electrical layouts where durability and efficiency are critical.
Its compact footprint makes it easy to mount in tight spaces, while the high-conductivity design ensures minimal voltage drop across demanding circuits. Built for serious power distribution, it’s a staple for any professional-grade setup.
Specifications:
- Max Voltage: 48V DC
- Max Amp: 200A
- Stud Size: 3/8″-16
- Mounting Holes: 0.25
- Mounting Screw Size: #10, 1/4″
- Distance Between Mounting Holes: 1.425″
Installation:
- Mount with (2) #10, 1/4″ Screws
Manufacturer : Bluewater
Manufacturer Part No : 312311-B-020
