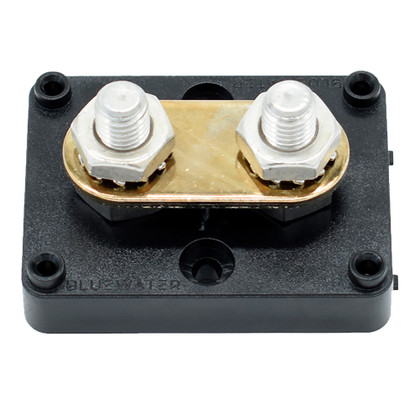

CAD DrawingCAD Drawing 2CAD Drawing 33/8" Dual Stud Busbar Copper Link
This Dual Stud Busbar features an integrated copper link that connects both studs for continuous conductivity and efficient current distribution. Engineered for high performance, it minimizes resistance while maintaining durability in demanding electrical systems. Ideal for marine and industrial applications where clean, reliable power transfer is essential.
This copper busbar connector supports large gauge cable lugs and resists corrosion, even in harsh environments. Its solid construction ensures long-term stability and reduced voltage drop. Whether you’re upgrading battery banks or building out a distribution system, this copper busbar connector delivers rugged efficiency you can count on.
Specifications:
- Max Voltage: 48V DC
- Max Amp: 200A
- Stud Size: 3/8″-16 or 5/16″
- Mounting Holes: 0.25
- Mounting Screw Size: #10, 1/4″
- Distance Between Mounting Holes: 1.425″
Installation:
- Mount with (2) #10, 1/4" Screws
Manufacturer : Bluewater
Manufacturer Part No : 312311-A-024
UPC : 810196333659
