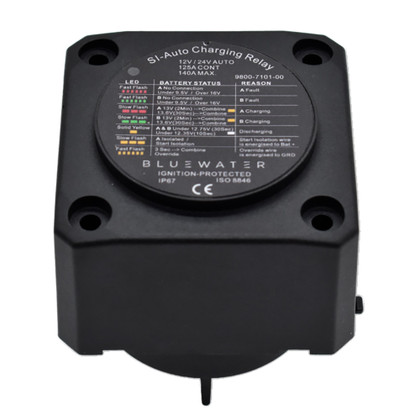

CAD DrawingCAD Drawing 2CAD Drawing 3Auto Charging Relay 12V, 140 AMP
The automatic charging relay (ACR) automatically manages battery charging to ensure maximum efficiency and protect your batteries.
Features:
- Automatic battery management – connects batteries during charging and isolates them when the voltage drops
- Start Isolation (SI) – protects sensitive electronics during engine cranking by temporarily disconnecting house loads (indicated by a slow-flashing yellow LED)
- High-output support – compatible with alternators up to 120 A
- Dual-color LEDs – provide real-time battery status: Fault, Charging, Discharging, Combine, SI, and Override modes
- Under Voltage Lockout – prevents the relay from closing when battery voltage is too low (9.5V for 12V systems, 19V for 24V systems)
- Durable design – IP67 waterproof, ignition protected, safe for marine and RV applications
Specifications:
- Continuous Rating: 120 Amps
- Intermittent Rating: 140 Amps
- Max Voltage: 48VDC
- Cable Size: 4/0 AWG
Applications:
- Boats – dual battery systems (starter + house)
- Sailboats – navigation and lighting batteries
- Fishing boats – trolling motor and accessory battery protection
Manufacturer : Bluewater
Manufacturer Part No : 9800-7101-00
