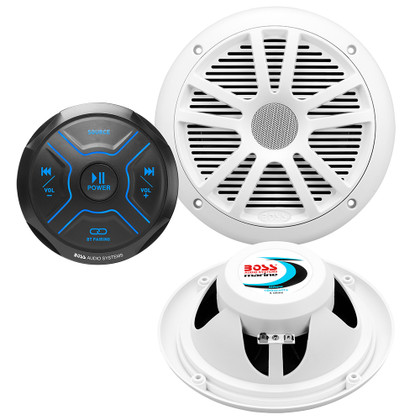

CAD DrawingCAD Drawing 2CAD Drawing 3MG150W.6 Kit with MGR150B & 2 MR6W Speakers
This kit includes products that are built to withstand the harsh environment and includes an MGR150B and two MRWT40 speakers.
Features:
- 2 channel
- Conformal-coated PCB
- Zero current draws memory
- Illuminated controls
- Cutout diameter: 3" (76 mm)
- IPX6-rated (weather-resistant or dustproof)
- Resin-treated cloth surround
- Polypropylene cone
- Dual cone design
- Composite basket
Extra Features:
- One pair of MR6W 6.5" full-range marine speakers with poly polycarbonate cone and rubber surround
- Zero current draw memory (radio preset memory in case of battery disconnect)
- IPX6-rated Marine
- Plays USB/MP3/WMA, FM/AM, and smartphones. Does not have a CD or DVD player.
- USB, aux inputs, and front, rear, and subwoofer switchable pre-amp outputs
- Compatible with audio output from smartphones and MP3 players
- Bluetooth audio streaming: play and control music and apps like Spotify and Pandora wirelessly
- Weatherproof
Inputs & Outputs:
- USB port
- USB charging (2A)*
- Aux-In
- Pre-amp outputs (1 pair)
Playback:
- Bluetooth® audio streaming stream and control your favorite music apps
Dimensions Features:
- Overall Diameter: 7.5 in. / 191 mm
- Installation Hole Diameter: 5.47 in. / 139 mm
- Mounting Depth: 2.24 in. / 57 mm
- Grill Protrusion: 0.87 in. / 22 mm
- Outer Motor Diameter: 3.7 in. / 94 mm
Speaker Specifications:
- Nominal Impedance: 4Ω
- Max Power: 180 W
- System Sensitivity (1 W/1 m): 86 dB
- Frequency Response: 85 Hz-20 kHz, ±3 dB
Dimensions:
- Shipping Weight (lbs.): 5.107
- GB Dimension (H" x L" x W"): 12.99 x 6.93 x 7.99 in.
- GB Weight (lbs.): 5.11
- MC Weight (lbs.): 30.64
- MC Dimension (H" x L" x W"): 21.5 x 13.54 x 16.73 in.
Manufacturer : Boss Audio
Manufacturer Part No : MG150W.6
