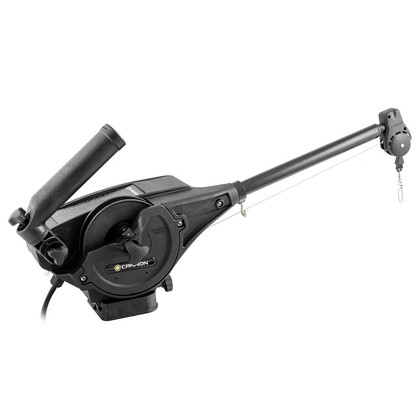

CAD DrawingCAD Drawing 2CAD Drawing 3Cannon Magnum 5 Electric Downrigger
Model: 1902300- Auto Up - Flip the up/down switch and your Magnum automatically retrieves your weight, stopping at the water line.
- Three-Digit Depth Counter - Always know exactly where your weights are with the easy to read three-digit depth counter.
- Short-Stop - When retrieving a weight, your downrigger will automatically stop it at the waterline. This eliminates cable strain caused by bouncing, stops the weight from hitting the boom end, and prevents weights from hitting the hull.
- Positive Ion Control (PIC) - Your boat’s electronics create a fish-repelling negative energy field in the water. Positive Ion Control neutralizes the negative energy field so fish will stick closer to your line.
- Fast Retrieval Rate - 250 feet-per-minute weight retrieval rate.
- Stainless Steel Boom - 24""
- Composite Spool - Comes pre-spooled with 250' of 150 lb of stainless steel cable.
- Dual Axis Rod Holder - Includes one (1) rear mount rod holder.
- Removable Side Plate - Easily access the spool to switch lines, fix snags and make adjustments.
Magnum 5 provide instant up/down control of your weights with a flip of the up/down switch. Stop cranking your weights up manually, and start getting automatic retrieval of your trolling weights to increase your efficiency on the water.
Specifications| Operation (Type) | Electric |
| Boom Length | 24 in |
| Boom Material | Stainless Steel |
| Spool Material | Composite |
| Line On Spool | 250 ft / 150 lb Stainless Steel Cable |
| Retrieval Speed | 250' Per Minute |
| Mounting Base | Universal Base |
| Rod Holders | 1 - Dual Axis Adjustable |
| Weight Capactity | 20 lb |
| Depth Counter | Analog |
| Control Method | Switch |
| Positive Ion Control | Yes |
| One-Boat Network Ready | No |
| Wireless Connectivity | No |
| Mobile App | No |
| Full-Color LCD Screen | No |
| Short Stop | Yes |
| Soft Stop | No |
| Depth Cycling | No |
| Preset Depth Storage | No |
| Bottom Tracking Compatible | No |
| Adjustable Speeds | No |
| Waterline Zero | No |
| Auto Up | Yes |
| Removable Side Plate | Yes |
| Trolling Weight Storage Hook | Yes |
| Enclosed Boom End | Yes |
| Warranty | Limited Lifetime |
| Input Voltage | 12 Volt |
What's in the Box:
- Magnum 5 Electric Downrigger
- Universal Mounting Base
- Line terminator
- One (1) Uni-line release
- Manual crank handle
