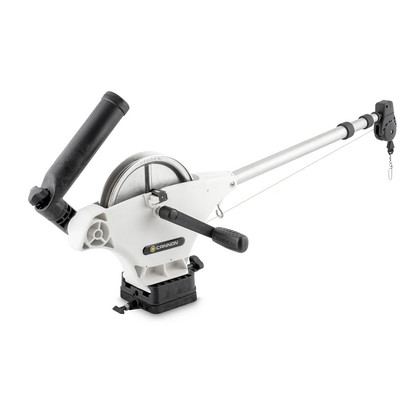

CAD DrawingCAD Drawing 2CAD Drawing 3Cannon Uni-Trol 10 TS Manual Downrigger
Model: 1901140- One-Hand Clutch Deploy - Precisely and easily position your baits with full control.
- Three-Digit Depth Counter - Always know exactly where your weights are with the easy to read three-digit depth counter.
- 2:1 Retrieval Rate - The 2:1 retrieval rate makes getting lines out of the water fast and nearly effortless.
- Stainless Steel Telescopic Boom - 316 marine-grade, extends from 24"" to 53"".
- Stainless Steel Spool - Comes pre-spooled with 200' of 150 lb of stainless steel cable. Built to handle monofilament or ""super lines"" without snapping or breaking.
- Dual Axis Rod Holder - Includes one (1) rear mount rod holder.
- Enclosed Boom End - Prevents lines from jumping when deploying or retrieving weights.
- Integrated Ball Storage Hook - No need to remove your weight at the end of the day.
Take command of controlled depth fishing when you equip your boat with a Uni-Troll 10 Tournament Series (TS) downrigger. The Tournament Series model includes stainless steel spool and 316-grade telescopic boom that extends from 24"" to 53"" and all-white construction. Features an innovative design that lets you pull your lines back in with less cranking effort and One-Hand Clutch Deploy for simple precise bait positioning. Built with a 2:1 retrieval speed, and low-profile swivel base.
Specifications| Operation (Type) | Manual |
| Boom Length | 24 in - 53 in Telescopic |
| Boom Material | Stainless Steel |
| Spool Material | Stainless Steel |
| Line On Spool | 200 ft / 150 lb Stainless Steel Cable |
| Retrieval Speed | 2:1 Retrieval Ratio |
| Mounting Base | Low-Profile Swivel Base |
| Rod Holders | 1 - Dual Axis Adjustable |
| Weight Capactity | 20 lb |
| Depth Counter | Analog |
| Control Method | Crank Handle |
| One-Hand Clutch Deploy | Yes |
| Trolling Weight Storage Hook | Yes |
| Enclosed Boom End | Yes |
| Warranty | Limited Lifetime |
What's in the Box:
- Uni-Trol 10 TS Manual Downrigger
- Universal Mounting Base
- Low-Profile Swivel Base
- Line terminator
- One (1) saltwater line release
- Manual crank
