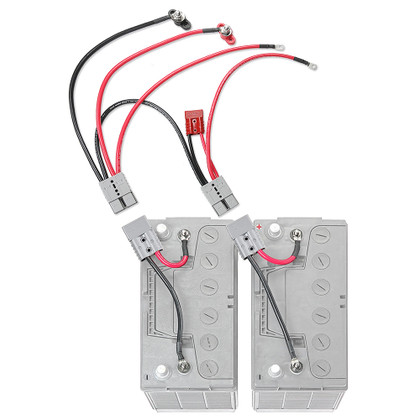

CAD DrawingCAD Drawing 2CAD Drawing 3Outboard Dual Battery Isolator/ACR & ACCS
Connect another battery for increased fishing time, and power all of your electronics all day without the worry of draining your starting battery. This unique system allows you to quickly add another battery to your house or starting battery with ACR capability to isolate your starting battery for powering large outboards like the Verado. Add an RCE12VB4 or RCE124F connector to connect your console and extra electronics.
A Dual Parallel Battery Connection for Boats is needed to isolate the starting battery for Large outboards. The battery draws power independently but will charge off the alternator, or charge at the same time.at the same time. 300 HP and up need full clean voltage to start, using this product you can run all your electronics, live wells, and bilge pumps off the secondary battery, without drawing any power from your main starting battery, always have power for starting your motor.. always have the power you need for spending more time on the water.
Dual 12V Starting Battery/with isolated house battery w/Accessories kit, we’ve got the perfect solution for rigging your outboard to power via 6 gauge wire leads on both ends and an 8 gauge accessories connector add an RCE12VB4 to connect multiple graphs, live imaging, and/or forward-facing sonar transducers and black boxes.
Features:
- Plug & Play Connections
- Lithium Compatible
- UL 1977 60 to 240 amps of DC power
Manufacturer : Connect-Ease
Manufacturer Part No : RCE12VBM6IK
UPC : 854996005491
