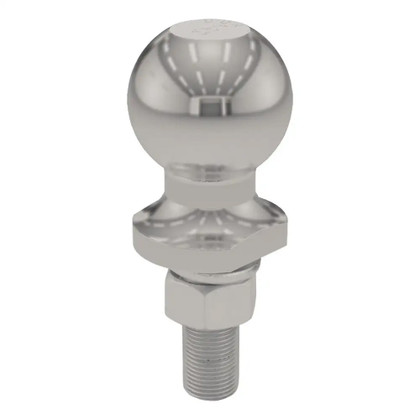

CAD DrawingCAD Drawing 2CAD Drawing 32" Trailer Ball - 3/4" x 2-1/8" Shank - 3,500 lb. - Stainless Steel
Out of the monotony comes one name that rises above all others. CURT trailer balls are designed for strength, ease of use, and, ultimately, to get you to your destination without hassle. CURT 2" trailer hitch balls are constructed from quality steel and are made with precision to fit your 2" trailer coupler like a hand in a glove. They are able to tow most standard-duty and heavy-duty trailers, such as utility trailers, boat trailers, campers, livestock trailers, and recreational vehicle trailers for hauling ATVs, snowmobiles, personal watercraft, and more. These tow balls are an excellent extension of your class 3 or class 4 trailer hitch and ball mount and are the ideal choice for most pickup trucks and SUVs. (NOTE: Never exceed the lowest weight capacity of any towing component, i.e., the vehicle, hitch, trailer, etc.)
This particular 2" trailer ball offers a ball capacity of 3,500 lbs. It features a 3/4" shank diameter, a 2-1/8" shank length, 0" of rise, and a stainless steel finish to protect against rust and scratches. With its fine-threaded shank, this 2" trailer ball also offers an added measure of holding strength and provides smooth installation and torquing. To give you peace of mind while towing to that next destination, CURT also carefully tests out the trailer balls and ensures that each one meets U.S. VESC specifications.
Features:
- Fits 2" couplers and accepts up to 3,500 lbs. GTW
- Stainless steel construction for excellent rust resistance
- Zinc-plated hex nut and helical lock washer for secure mounting
- Features fine threads for superior holding strength
- Tested for safety to meet U.S. VESC V-5 specifications
Specifications:
- Ball Capacity: 3,500 lbs
- Ball Diameter: 2 in.
- Color: Stainless SteelÂ
- Finish: Polished stainless
- Hub Warehouse: D25
- Material: Forged steel
- Shank Diameter: 3/4 in.
- Shank Length: 2-1/8 in.
- Shank Rise: 0 in.
- Torque: 160 ft. lb.
- Warranty: Limited lifetime warranty (one-year finish, one-year parts)
*The mounting platform must be at least 3/8 in. thick, and the hole size must not be more than 1/16 in. larger in diameter than the threaded shank
Manufacturer : CURT
Manufacturer Part No : 40082
UPC : 612314110827
