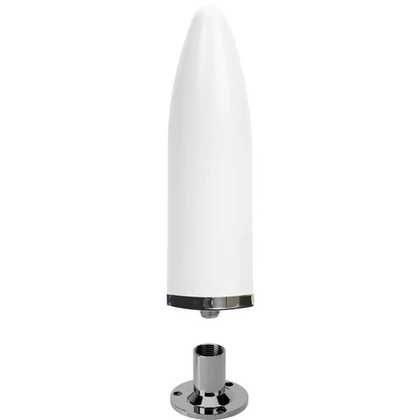

CAD DrawingCAD Drawing 2CAD Drawing 3Digital Antenna 1685-PW Wideband Deck Mount Antenna
Model: 1685-PW- Maximum power for 4G, 5G, WiFi signals
- 9dBi omni-directional gain
- Foam filled to withstand extreme vibrations
- 316 stainless steel base
- Includes Deck Mount
- Weatherproof N female connector
- 5-year warranty
Digital Antenna's omni-directional antenna with stainless steel base provides excellent performance from 600-3000 MHz and is ideal for mobile or fixed locations.
9dBi antenna designed and low profile manufactured in the USA by Digital Antenna, greatly improves signal strength providing a maximum signal range.
For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters & gateways. Available in several mounting options for use on boats, buildings, utilities, M2M, and more marine environments.
Specifications| Radiation Pattern | Omni-Directional |
| Gain | 9dB |
| Bandwidth | VSWR (3g, 4G, 5G, WiFi) <1.5: 1 = 600-3000 mHZ |
| Cable | Not included |
| Impedance | 50 ohms |
| Maximum input power | 50 watts |
| RF Connector | N Type Female |
| Polarization | Vertical |
| Wind rating | > 160 KPH |
