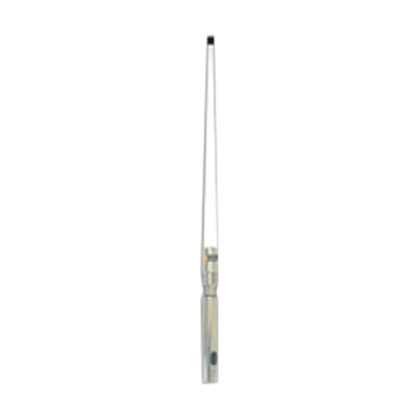

CAD DrawingCAD Drawing 2CAD Drawing 3Digital 869CW-S 8 feet Global Cell
With Male Ferrule
Model: 869CW-S- Color: White
- Powerful brass radiators
- Soldered connections
- Power directing ferrite choke bead
- High gloss urethane finish
- 316 stainless steel ferrule
- 9dB gain
- Stainless steel double female ferrule for mounting 1-14 threaded base
- Highest quality type N female
- Cable not included - Use our PowerMaxTM low loss antenna cable
- Omni-directional radiation pattern
- Bandwidth VSWR:< 1.5:1 = 824 to 960 and 1710 to 2170 MHz
- 50 Ohm impedance
- Maximum input power of 250 Watts
- Dimensions: 30"L x 1 in tapered OD
- White
