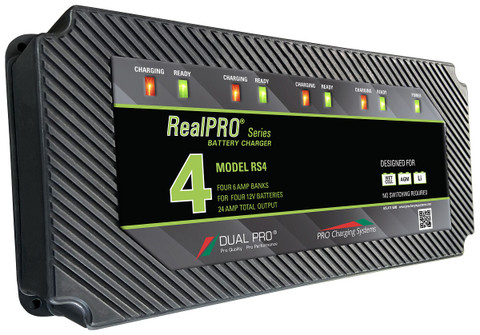

CAD DrawingCAD Drawing 2CAD Drawing 3Dual Pro RS4 4 Bank 24Amp Battery Charger
Model: RS4- Charges Wet Cell, AGM and most Lithium Batteries*
- Designed for use in fresh and salt water
- Dependable, rugged construction and waterproof
- Independent outputs and fully automatic
- Battery maintenance mode
- Two year warranty
- DC charge cables = 6ft and AC power cord = 6ft
- approved and meets ISO 8846 Marine standards
- Models available to charge 12-36V systems
- LED lights indicate "Each Battery’s" state of charge
- Reverse polarity protected and no installation restrictions
- Ignition protected (US Coast Guard 33 CFR 183.410)
- FCC 15 Parts A and B Interference Compliant
RealPRO Series battery chargers are an affordable, reliable and safe battery charging system designed for everyday use. The system is engineered for users who need a charging system on an occasional basis and may not want or need the capabilities of a heavier duty and higher amperage product. It is designed for use in many types of applications including bass boats, runabouts, pontoon boats, other watercraft, automobiles, ATVs, golf carts and other similar uses. The system delivers sophisticated capabilities and superior value to customers.
RealPRO Series battery chargers are for use with Lead Acid (Wet Cell), AGM and most Lithium* batteries.
*Always verify with PCS before using with Lithium batteries.
Specifications| Model | RS4 |
| Description | Four 6 AMP Banks |
| Total Output | 24 Amps |
| Weight Per Unit | 6.5lbs |
| Size Per Unit | 3.3"" x 6.6"" x 13.3"" |
| Reverse Polarity | Yes |
| Float Stage Maintenance | Yes |
| Independent Outputs | Yes |
| Battery System | 12V-48V |
