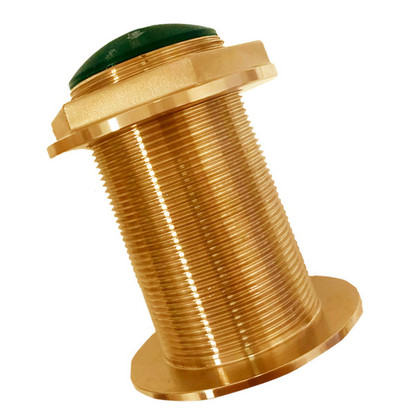

CAD DrawingCAD Drawing 2CAD Drawing 3Echonautics BT70H600 130-210kHz High CHIRP 600watts 12° Tilted Element
Model: BT70H600-12A low-profile thru hull CHIRP transducer, that matches vessels deadrise to specific angle.
Designed to minimize drag and to perform at high speeds
Specifications| Function | Depth and Temperature |
| Frequency | CHIRP 130-210kHz |
| Mount style | Thru Hull |
| Tilt/deadrise | 12° tilted element ; for 8° to 15° hull deadrise |
| Material | Bronze |
| RMS Power | 600 watts |
| Hole diameter | 2.38 in |
| Cable length | 27 ft |
| Temperature sensor | NTC |
| Accoustic window | Urethane |
