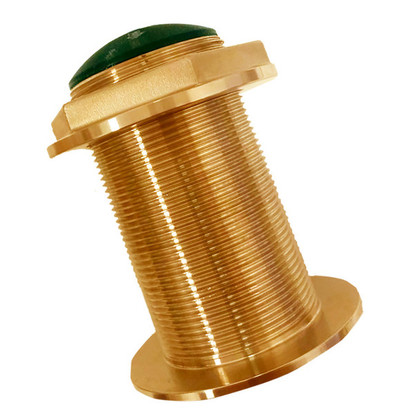

CAD DrawingCAD Drawing 2CAD Drawing 3Echonautics BT70MB300 95-155kHz Medium CHIRP 300watts 0° Tilted Element
Model: BT70MB300-00A low-profile thru hull CHIRP transducer, that matches vessels deadrise to specific angle.
Designed to minimize drag and to perform at high speeds
Specifications| Function | Depth and Temperature |
| frequency | CHIRP 95-155kHz |
| Mount style | Thru Hull |
| Tilt/deadrise | 0° tilted element ; for 0° to 7° hull deadrise |
| Material | Bronze |
| RMS Power | 300 Watts |
| Hole diameter | 2.38 in |
| Cable length | 27ft |
| Temperature sensor | NTC |
| Accoustic window | Urethane |
