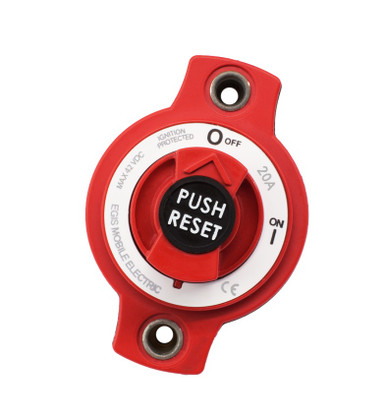

CAD DrawingCAD Drawing 2CAD Drawing 3EGIS 20A Mini Breaker Disconnect Switch Panel Mount
Model: 4701-20- Easy ON/OFF Rotary Switch Easy to operate and visually recognize switch position.
- Stainless Steel Self- Locking Hardware Corrosion and vibration resistant for harsh environment applications
- Weatherproof Construction Sealed against dust and moisture penetration. High temp rated for all installation locations. ?
- Compact Size Fit more circuit switching / protection on a smaller panel!
- Made in the USA of high quality components.
- Ignition Protected Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
42 Vdc Rating: easily supports 12, 24 and 36Vdc applications. Ideal for trolling motor switching applications.
High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
Specifications| CONTINUOUS CURRENT (AMPS) | 20 |
| MAX VOLTAGE (VDC) | 42 |
| INTERRUPT CURRENT @ 14 VDC (AMPS) | 3,000? |
| Cycle Switching Endurance | 5,000 |
| INGRESS PROTECTION RATING | IP66 |
