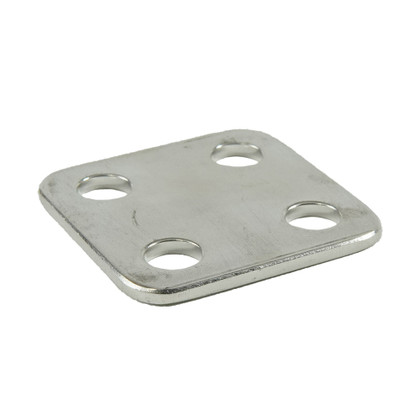

CAD DrawingCAD Drawing 2CAD Drawing 34 Hole Quad Shaped Busbar Connector
Link Together XD Single, Dual, and Triple XD Relays to multiple sealed fuse blocks or link fuse blocks together for compact installation.
Tin-Plated Copper to ensure reliable circuit connectivity and anti-corrosive features keep it last long term.
Specifications:
- Continuous Current (Amps): 500
- Max Voltage (Vdc): 72
- Material: Tin Plated Copper
- Size: 90mm x 90mm
- Thickness: 2.8 mm (1/8")
- Terminal Stud Hole Size: 10.5mm (3/8")
Manufacturer : Egis Mobile Electric
Manufacturer Part No : 8794
