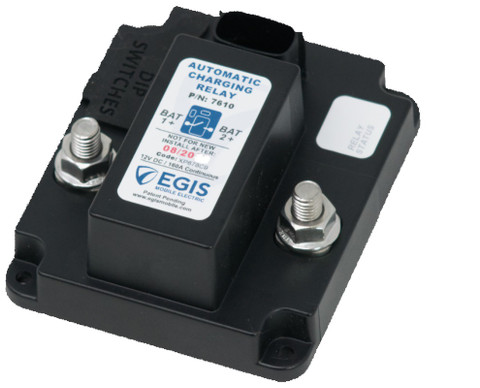

CAD DrawingCAD Drawing 2CAD Drawing 3EGIS 7610 Programable ACR 160A / 24v
Model: 7610-24- TOP SIDE DIP SWITCHES: Accessible after mounting, for programming voltage settings and determining active features. Protected by self-retained cover.
- STAINLESS STEEL SELF-LOCKING HARDWARE: 100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.
- INTEGRAL I/O CONNECTOR: Sealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4"" quick connect terminals on competitive products.
- CONNECTION OPTIONS: Comes standard with Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, Wire Leads)
- EASY INTEGRATION WITH RT FUSE BLOCKS (24 HR CIRCUITS): Optional EasyLink bus bars reduces space and cost to connect TH Series Relays with RT Series Fuse Blocks.
- LED DIAGNOSTICS: Provides indication of pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and Output on/off status.
Ultra-Low Power Draw Compare to typical ACRs (7-10 mA) vs 7610 ACR @ 1.3 mA, will not deplete batteries even after extended electrical system downtime.
Simple & Robust Installation: Integrated sealed plug eliminates corrosion, includes Deutsch/Amphenol DTM connector harness
Start Assist input option to ensure maximum cranking amps available by allowing manually connecting of batteries via remote switch.
Bullet-proof Construction: Sealed unit, stainless steel hardware, high temperature materials allow mounting anywhere. Integrated thermal overload shutdown protection.
Additional Low Amp Output can be used to report device status remotely, or drive a secondary relay for charge to a battery bank without a charge source (see examples)
Specifications| CONTINUOUS CURRENT (AMPS) | 160 |
| Voltage Range (v dc) | 16 - 36 |
| Off-State Current Draw (mA) | 1.3 |
| Intermittent Current (amps) | 240 |
| ACR closing voltage range (v dc) | 25.8-27.2 |
| ACR opening VOLTAGE RANGE (V DC) | 24.2-25.6 |
