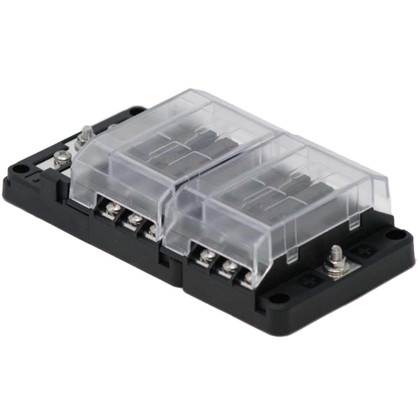

CAD DrawingCAD Drawing 2CAD Drawing 3RT Fuse Block 12 Position with Ground & LED Indication
This 12-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has a ground and LED indication.
Applications:
- Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
- Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.
Features:
- Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle
- Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
- Supports SAE circuit protection standards for thermal/short circuit events
Specifications:
- Maximum Current (Entire Block) Amps: 10
- Maximum Current (Per Circuit) Amps: 30
- Max Output Wire Size: #10 AWG
- Voltage Range VDC: 0-36
- Number of Fuse Positions: 12
- Compatible Fuse Types: ATO / ATC / ATF
Focal Features:
Spare Fuse Locations
Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.
Stainless Steel Self-Locking Hardware
100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.
LED Fuse Diagnostics
Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.
Cover/ Label Recesses
Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.
Ground Block Included
Includes a 12-position ground return block with multi-level low amp terminal screws for improved mounting.
Ground Block Separates
The ground block section optionally separates from the fuse block section, affording increased deployment options for challenging installations.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Egis Mobile Electric
Manufacturer Part No : 8026
UPC : 850035199725
