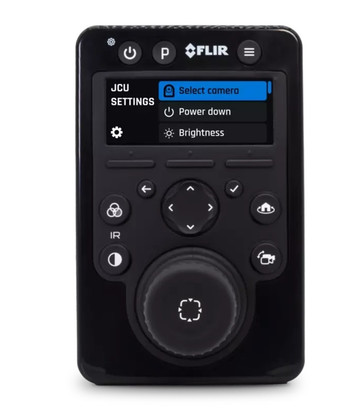

CAD DrawingCAD Drawing 2CAD Drawing 3FLIR JCU-4 remote Joystick Controller with Accessories
Model: E70695- Rugged, low profile 3-axis joystick for precision camera control in all conditions
- The 2.9" color LCD and keypad simplify camera operation and offer easy access to the joystick setup menus
- Dimmable color LCD and back lit keypad preserves the operator’s vision during nighttime operations
- 3 custom keys for quick access to user-defined camera functions.
- Pair the JCU-4 with a FLIR marine camera and marine monitor to create a complete camera viewing and control solution
- Add the JCU-4 to an integrated chartplotter and camera system for a dedicated tactile camera control alternative.
The JCU-4 provides confident control of FLIR marine thermal and visible cameras. Pan, tilt, zoom, and control all the camera functions with JCU-4’s ergonomic keypad and responsive joystick control. Our premier FLIR joystick controller, the JCU-4 pairs seamlessly with FLIR marine thermal cameras and provides the operator a dedicated tactile camera control solution.
Designed by mariners, for mariners the JCU-4 is perfect for those who actively navigate using thermal technology and require dependable and intuitive control of their FLIR camera.
Specifications| Physical | |
| Width | 93.66 mm (3.69 in) |
| Height | 146.66 mm (5.77 in) |
| Depth | 63.36 mm (2.49 in) |
| Depth (including joystick) | 113.30 mm (4.46 in) |
| Power | |
| PoE class | Class 2 |
| Nominal supply voltage | PoE: 48 V dc Alternate power: 12 V / 24 V dc |
| Operating voltage range | PoE: 44 V to 57 V dc Alternate power: 8 V to 32 V dc |
| Power consumption | 5 W Max with full keypad illumination |
| Network | |
| Network connection ports | 1x 10/100/1000 Mbits/s RayNet (Ethernet) 1x 10/100/1000 Mbits/s PoE RayNet (Ethernet) |
| Display | |
| LCD Size | 2.9" |
| LCD Type | IPS TFT LCD |
| Active area | 26.51 mm x 67.68 mm |
| Brightness / Luminance | 600 nits / 600 cd/m2 |
| Viewing angles | 80 + / 80 + |
| Resolution | 376 (H) x 960 (W) pixels (RBG) |
| Contrast ratio | 1:1500 |
| Environmental | |
| Operating temperature | -25 C to +55 C (-13 F to 131 F) |
| Storage temperature | -30 C to +70 C (-22 F to 158 F) |
| Relative humidity | Maximum 93% @ + 40 °C (104 °F) |
| Waterproof rating | IPx6 |
What's in the Box:
- JCU-4 (includes 4x screws and 4x mounting plates pre-fitted).
- Front cover.
- Weather cover.
- Documentation pack.
- Right-angled RayNet (Ethernet) to RJ45 adapter cable, 3 m (9.84 ft).
- Right-angled 3-pin power cable, 3 m (9.84 ft).
