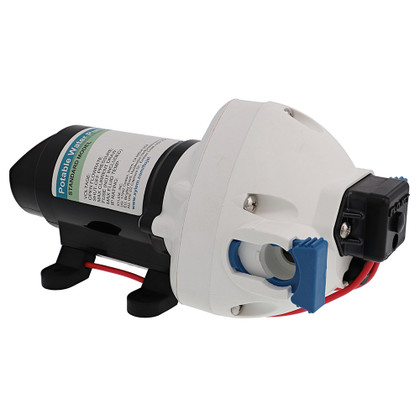

CAD DrawingCAD Drawing 2CAD Drawing 3RV Water Pump with Strainer - 12V - 3GPM - 50PSI
Flojet’s RV water pumps are designed to provide years of satisfactory service in applications both large and small. The lineup features a wide range of flows and a variety of pressure settings to suit each individual need and preference. Standard models have a motor enclosed in a protective plastic housing, whereas the HD models include a wider diameter motor with a powder-coated steel shell, cast aluminum end bells, and lower housing to improve pressure capability and life.
All models include an integrated pressure switch, vibration dampening rubber mounting feet, and quick-connect ports. A built-in bypass valve helps to reduce unwanted pump cycling and noise. All models other than the 1 GPM come with an inlet strainer included as well.
Features:
- CSA certified for potable water
- Integrated, sealed pressure switch for on-demand operation
- Internal bypass for quiet, smooth operation
- Integrated, sealed pressure switch for on-demand operation
- Co-molded diaphragm technology for long life and durability
- HD models have larger motors and cast aluminum lower housings which allow for long-life, even at high pressures
- Can run dry without damage
- Quick connect ports for ease of installation, servicing, and maintenance
- Vibration dampening mounting feet
- Self-priming allows for installation versatility
- Built-in backflow prevention valve
- Thermal protection on motor prevents overheating
Specifications:
- 12VDC & 24VDC
- 3 GPM (11 LPM)
- 50 PSI (3.4 BAR)
- Strainer & port fittings included
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Manufacturer : FloJet
Manufacturer Part No : R3526144D
