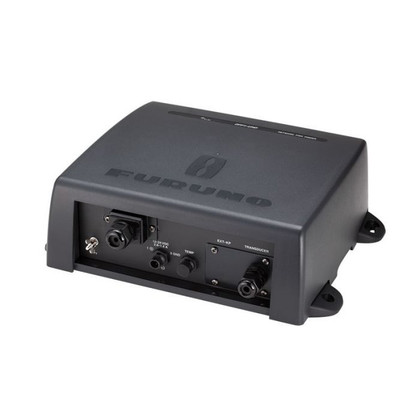

Furuno Dff3-uhd High-power Trueecho Chirp Black Box Fish Finder

Furuno Dff3-uhd High-power Trueecho Chirp Black Box Fish Finder

No reviews yet Write a Review
17.00 LBS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Furuno DFF3-UHD High-Power TruEcho CHIRP Black Box Fish Finder for NavNet TZouch3 and NavNet TZtouch2 TZT2BB w/5M LAN Cable, Less Transducer

Model: DFF3-UHD
  • 2 kW or 3 kW Power Output
  • Transmits across Low, Medium, and High CHIRP frequency ranges
  • High Power = greater resolution and depth capability at all ranges
  • Compatible with NavNet TZtouch3 as well as NavNet TZtouch2 TZT2BB Black Box MFD
  • Gathers more expansive and higher-quality data than comparable tone pulse Fish Finders
  • Find and catch more of your target species, game fish and baitfish, even when they're tightly schooled or near the seafloor
  • A-Scope feature and programmable Fish, Depth, or Temp Alarms
  • Enhanced automatic cruising or fishing modes to suit your style of boating

The DFF3-UHD High Power TruEcho CHIRP™ Fish Finder for NavNet TZtouch3 delivers the ability to see fish and bottom structure deeper and clearer than ever before. Furuno’s superior digital signal processing interprets echoes from fish and underwater structures with unparalleled clarity, accuracy, and resolution, at unprecedented depths - we’re talking maximum depth scales down to 15,000 feet!

TX TypeDual Band CHIRP and CW
Output PowerCHIRP: Max. 3 kW
CW: 2/3 kW
Max. Range Scale15,000 ft
Frequency25 to 242 kHz
BT-5 for 5/10 kHz CW TransducerCompatible
InterconnectionConnect to MFD Network via Ethernet
Networked MFDsNavNet TZtouch3 (v3+ software)
NavNet TZT2BB (v9+ software)
Power Supply12-24 VDC
Power Consumption3.0-1.6 A
Protection LevelIP55
Dimensions15 x 4.72 x 11.78 in
Weight7.94 lbs

What's in the Box:
  • DFF3-UHD Network Fish Finder
  • 000-197-092-10 Cable FRU-3P-FF-A002M-001
  • 001-167-890-10 LAN Cable
  • 000-162-608-10 Self-Tapping Screw 5x20 x 4
  • 000-199-317-10 EMI Core GRFC-8
  • IME-204-10Z Installation Manual
