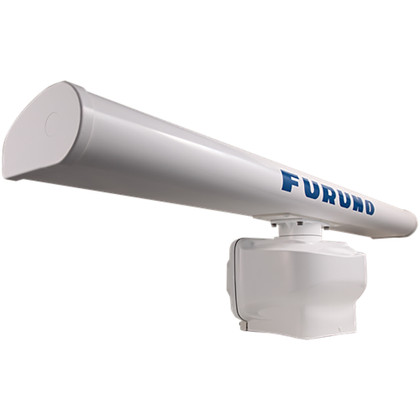

CAD DrawingCAD Drawing 2CAD Drawing 3DRS6AX 6kW UHD Digital Radar with Pedestal, 6' Open Array Antenna & 15M Cable
DRS6AX "X-Class", a whole new class of Radar!
Pushing the boundaries of what is possible with conventional Radar technology, DRS6AX "X-Class" marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS6AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 120 nautical miles.
The redesigned pedestal unit is 20% lighter than previous DRS6AX model and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.
Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS6AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.
Features:
- 6kW Power Output
- Enhanced target detection, both short and long range
- Minimum detection range of just 20M
- Fast Target Tracking™
- Bird Mode
- Pedestal unit, 20% lighter than previous DRS6A unit, updated low noise motor
- No PSU required, decreasing total costs
- Easy installation without the need to open pedestal unit
- Smart-connector cable
- Antenna - The XN13A/6 is a 6' Open Array Antenna that has a horizontal beam width of 1.2
- 15M Cable
- Compatible with NavNet TZtouch and NavNet TZtouch2 and NavNet TZtouch3 (not compatible with NavNet 3D or earlier NavNet models)
- The DRS6AX is a 24V system; a converter will be required for use with 12V power systems
Product : FURUNO DRS6AX/6 RADAR BUNDLE PEDESTAL 6FT ARRAY 15M CABLE
Manufacturer : Furuno
Manufacturer Part No : DRS6AX/6
Product : FURUNO DRS6AX/6 RADAR BUNDLE PEDESTAL 6FT ARRAY 15M CABLE
