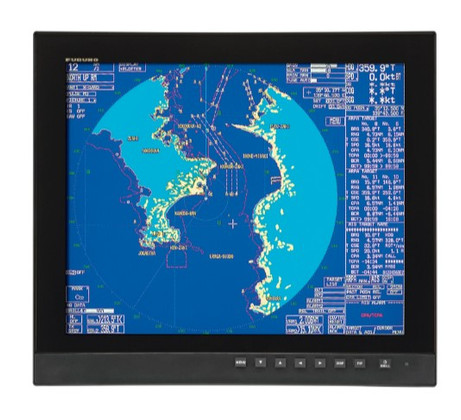

CAD DrawingCAD Drawing 2CAD Drawing 3Furuno MU192HD LCD Display
Model: MU192HDThe FURUNO MU192HD is a multi-purpose marine LCD that features Furuno's unmatched quality and reliability that you depend on. The MU192HD employs an extremely bright (1,000 cd/m2 ) color TFT LCD with special AR (anti-reflective) glass filter to cut down on annoying glare. With its bright colors, excellent contrast and wide viewing angles, the MU192HD monitor is perfect for any tropical sunlight or low light conditions. The LCD and glass are bonded together to ensure fog-free operation on open fly-bridge installations
The MU192HD features SXGA (1280 x 1024) screen resolution. It’s wide range of interface options include 1 HDMI,1 RGB, 1 DVI-D, and 1 composite video inputs. The display may be used as either the main or remote display for a variety of marine equipment, such as Black Box Radar, Sounder, Sonar, or NavNet series. The MU192HD can also display images from security cameras, DVD player, computers, or other peripheral devices.
Specifications| Display Size | 19 inches |
| Display Type | Color LCD |
| Input Voltage | 12-24 VDC |
What's in the Box:
- Furuno MU192HD 19"" Color LCD Marine Monitor
- Hard Cover
- Fuse 125V 5A (3)
- Fuse 125V 10A (3)
- Mount Metal 19 (2)
- Wing Bolt (6)
- Wing Nut (6)
- Screw Protector (6)
- Washer Head Screw (12)
- Attachment Cover 19 (2)
- Power Cable Assembly
- Cable Tie (3)
- Fuse Label
- Slide Switch Setting Guide
- Change of Fuse Sheet
- Flush Mounting Template
