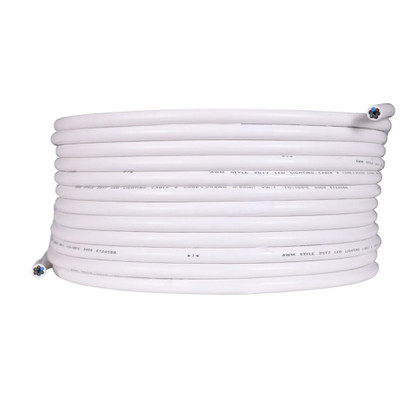

CAD DrawingCAD Drawing 2CAD Drawing 3Marine LED Cable (6 Core x 20 AWG, 0.5 sq mm)
Fusion's Marine LED cable is specifically designed for use on boats with LED lights such as illuminated speakers, strips, and courtesy lighting. Delivering enhanced protection from the elements, the multi-core cable construction is wrapped in a flexible white PVC jacket.
Specifications:
- Cable Reel Length: 328' (100M)
- Temperature Rating: 14° to 221° F (-10° to 105° C)
- Fire Retardant Rating: VW-1
- Voltage Rating: 300V Max
- Oil Resistance: Yes
- Cable Construction: 6 core, multistrand tinned copper with white PVC outer jacket
- Warranty: 1-Year
Manufacturer : Fusion
Manufacturer Part No : 010-13386-00
