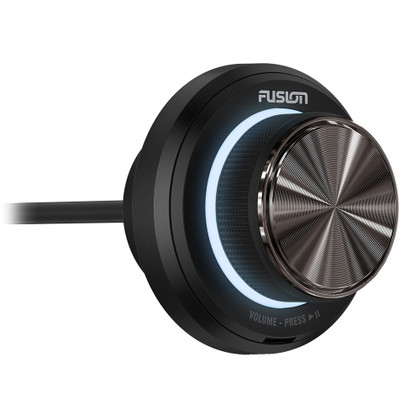

CAD DrawingCAD Drawing 2CAD Drawing 3MS-NRX50 Single Stereo Volume Controller
Simple Audio Control
This easy-to-use volume controller can be front mounted on your boat’s dash, and it controls all audio zones of a single stereo via a large single knob.
Features:
- Large Single-Knob Control
- Connects to your boat's NMEA 2000® Network
- Adjusts all audio zones of a single stereo
- Play or pause with the push of a button
- Requires single 1.5" hole for installation
- IPX7-Rated for marine environments
In The Box
- Fusion NRX50 single stereo volume controller
- Two screws
- Documentation
Specifications
- Physical Dimensions (HxWxD): 2.35" x 2.35" x 2.04"
- Water Rating: IPX7
- Power Input: 10.8-16 VDC
- NMEA 2000® LEN: 2 (100 mA)
- NMEA 2000 Ports: 1 (micro-C connector)
- Warranty: 1 year
Manufacturer : Fusion
Manufacturer Part No : 010-04138-00
