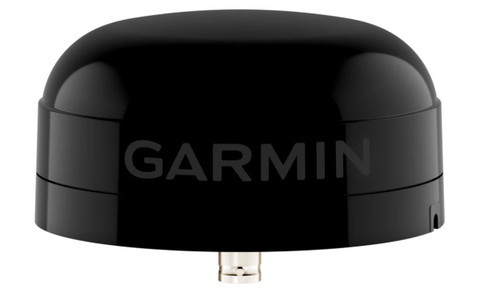

CAD DrawingCAD Drawing 2CAD Drawing 3Garmin GA™ 38 GPS and GLONASS Antenna for Cortex® V1 and M1, Black
Model: 010-13305-20Built to take advantage of the GLONASS system/constellation of satellites as well as standard GPS, this robust external antenna is packaged in a low-profile water resistant housing and provides 3 easy mounting solutions: pole, surface or under-deck (for the underside of fiberglass decks).
Built to take advantage of the GLONASS system/constellation of satellites as well as standard GPS, this robust external antenna is packaged in a low-profile water resistant housing and provides 3 easy mounting solutions: pole, surface or under-deck (for the underside of fiberglass decks).
Specifications| Dimensions (DxH) | 3 19/32"" x 1 15/18"" (91.6 mm x 49.5 mm) |
| Weight | 7.1 oz (201 g), white |
| Case material | Fully gasketed, high-impact plastic alloy, waterproof to IPX7 |
What's in the Box:
- GA 38 - Black
- Surface mounting bracket
- Pole mounting bracket
- Mounting hardware
- BNC-SMA antenna cable (32 ft/10m)
- Installation instructions
