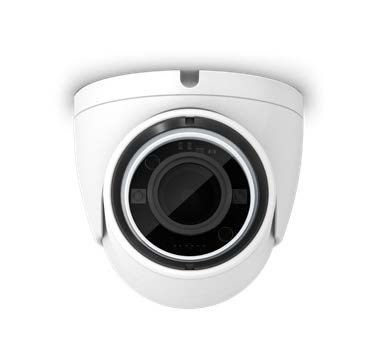

CAD DrawingCAD Drawing 2CAD Drawing 3Garmin GC14 marine Camera
Model: 010-02667-00- Low Light Visability
- Rotate Images
- Reverse Image
This small and discreet analog camera delivers excellent quality images that can be viewed via onboard TVs, video monitors or compatible chartplotters that support video input. Use it in multiple areas above or below decks, and view on one chartplotter or across multiple networked compatible chartplotters.
GC 14 features a convenient reverse-image setting to help you back out of tight locations, such as a crowded marina. It even provides clear images in low light, making it perfect for monitoring your dark engine room. Easy to install, its small size and rugged weatherproof case allow for flexible placement.
Analog camera delivers excellent quality images, even in low light; perfect for engine rooms; provides visibility in low light up to 49’ (15 meters), an improvement over previous-generation Garmin analog cameras.
Reverse-image setting (available on compatible Garmin chartplotters) helps when backing out of tight locations, such as a crowded marina.
Reverse-image setting (available on compatible Garmin chartplotters) helps when backing out of tight locations, such as a crowded marina.
Specifications| Dimensions | 2.0" 1.7" (5.1 4.4 cm) |
| Weight | 6.7 oz (190 g) |
| Resolution | PAL: 976(H) x 582(V) |
| Viewing angle | DxHxV(°) = 95.0° x69.0° x52.0° |
| Scanning system | PAL: 625 lines 2:1 interlaced |
| Sync system | Internal |
| Video output | 1.0 Vp-p composite 75 ohms composite |
| Low-light vision range | Up to 49’ (15 meters) |
| S/N ratio | More than 56 db (AGC off) |
| Operating temperature | -4° to 140°F (from -20° to 60°C) |
| Power consumption | 90 mA (IR off), 170mA (IR on), @12 Vdc |
| Compass safe distance | 10"" |
| Water rating | IPX7 |
