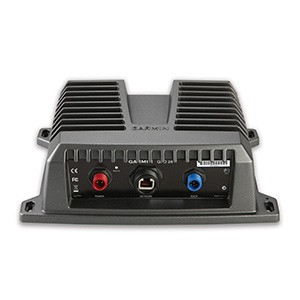

CAD DrawingCAD Drawing 2CAD Drawing 3Garmin GSD24 Advanced Sonar Module
Model: 010-00957-00The GSD 24 features a vastly improved digital sonar design for superior target definition and deep-water performance.
With up to 2,000 Watts of transmit power and a high-dynamic range receiver, the GSD 24 brings high-definition imaging to your compatible Garmin chartplotter. The system is dual frequency (50/200 kHz) capable and offers selectable transmit power (600 W, 1 kW and 2 kW, depending on transducer) for pin-point accuracy at depths of up to 5,000 ft (1,500 m). So whether you're out sport fishing or just keeping an eye on hazardous terrain and reef structures beneath your boat, you'll see a clearer picture with enhanced separation of images and deeper bottom detection.
Thanks to the easy connectivity of the Garmin Marine Network, installation of the GSD 24 is a snap. Once connected, your sonar data will be shared on any compatible chartplotter on the network. Plus, the network's high-speed connections ensure that you get ultra-fast screen updates with minimal delay.
Specifications| Fully gasketed, aluminum and steel housing | |
| DIMENSION | 8×11.2 in×3.2 in (204 mm × 284 mm × 81 mm) |
| WEIGHT | 5.27 lbs (2.39 kg) |
| WATERPROOF | IPX7 |
| TEMPERATURE RANGE | From 5 degF to 158 degF (from -15 degC to 70 degC) |
| Electrical Features | |
| POWER INPUT | 10-35 V |
| POWER USAGE | 40 W maximum |
| FUSE | 7.5 A |
| COMPASS-SAFE DISTANCE | 15.75 in. (40 cm) |
| Sonar Features | |
| FREQUENCY | 50/200 kHz |
| TRANSMIT POWER | 25-2 |
