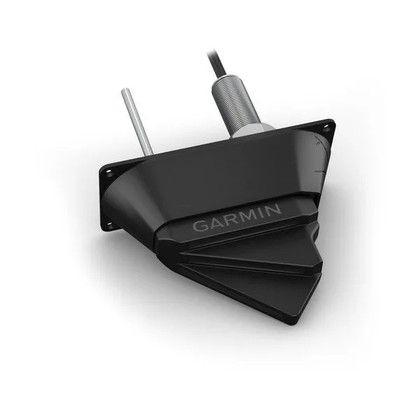

CAD DrawingCAD Drawing 2CAD Drawing 3Garmin Panoptix™ LVS32-TH Transducer Thru-hull Mount
Model: 010-12928-01This transducer is part of the Pantopix LiveScope system and requires the GLS 10 sonar black box to function. This thru-hull version transducer features LiveScope Forward to see detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming up to 200’ around your boat in real-time, even when your boat is stationary. Attitude Heading Reference System (AHRS) stabilization keeps your sonar view steady, even in rough conditions.
Specifications| TRANSDUCER FREQUENCY | 530 - 1,100 kHz |
| TRANSDUCER POWER | 500w |
| TRANSDUCER BEAMWIDTH | 20° x 135° |
| TRANSDUCER MAXIMUM DEPTH | Forward: 200’ (61.0 m) |
| TRANSDUCER CABLE LENGTH | 20 ft. |
| TRANSDUCER DEPTH/SPEED/TEMPERATURE | Depth |
| TRANSDUCER NUMBER OF PINS | 21 |
What's in the Box:
- Panoptix LVS32-TH transducer
- Thru-hull mounting hardware
- Mounting hardware
- Documentation
