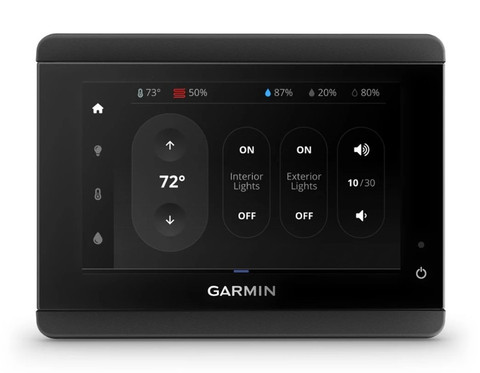

CAD DrawingCAD Drawing 2CAD Drawing 3Garmin TD50 Touchscreen Display
Model: 010-02139-10- SLEEK 5" EDGE-TO-EDGE GLASS TOUCHSCREEN DISPLAY
- COMPATIBLE WITH NMEA 2000®, EMPIRBUS™ AND GARMIN MARINE NETWORKS
- MINIMAL FOOTPRINT — INSTALLS ALMOST ANYWHERE
- MATCHES THE LOOK OF GPSMAP® SERIES CHARTPLOTTERS
- EASY PLUG-AND-PLAY NETWORK INSTALLATION
- FLAT- OR FLUSH-MOUNTING OPTIONS
Wherever you need some extra system access on board, the 5" TD 50 touchscreen fits the need. View engine and systems data, or adjust settings for lights, climate control, entertainment, security sensors, autopilots and more.
The easy-to-use and easy-to-install TD 50 touchscreen can work as an extra display at the helm station or for below-deck networked access to switching functions and data monitoring throughout your vessel.
For integrated digital control on board, the TD 50 touchscreen display is compatible with NMEA 2000, third-party OneHelm™ systems, EmpirBus and the Garmin Marine Network. System connectivity couldn't be simpler.
Touchscreen control through an easy graphical interface lets you access multiple switching and monitoring functions for electrical components throughout your boat.
The TD 50 unit’s slimline design, minimal footprint and flat- or flush-mounting options enable installation in virtually any onboard location where auxiliary system access is needed.
Water-rated to IPX7 standards, the TD 50 touchscreen is built for harsh marine environments. The bright LCD screen offers crisp, clear daylight visibility, adjustable backlighting and a wide viewing angle for excellent readability wherever it’s used on board.
Specifications| Dimensions without sun cover (HxWxD) | 4.1"" x 4.5"" x 2.0"" (10.5 x 14.0 x 5.1 cm) |
| Dimensions with sun cover (HxWxD) | 4.5"" x 5.7"" x 2.2"" (11.3 x 14.4 x 5.6 cm) |
| Weight without sun cover | 11.6 oz. (328 g) |
| Weight with sun cover | 13.2 oz. (375 g) |
| Temperature range | from 5° to 131° F (from -15° to 55° C) |
| Compass-safe distance | 7.9"" (20 cm) |
| Case material | Fully-gasketed polycarbonate |
| Lens material | Glass with anti-glare and anti-fingerprint finish |
| Water rating | IPX7 |
| Brightness | 1200 cd/m2 (NIT) |
| Power usage | 5.9 W max |
| NMEA 2000® input voltage | 9 to 16 Vdc |
| NMEA 2000 LEN @ 9 Vdc | NMEA 2000 LEN @ 9 Vdc |
