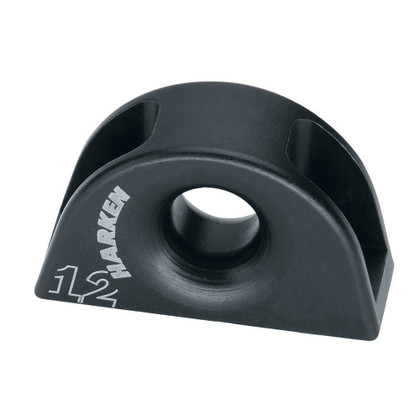

CAD DrawingCAD Drawing 2CAD Drawing 312mm Bolt-Down Fairlead - Single
Harken Bolt-Down Fairleads are used on boats 6–15 m (20–50 ft) as shallow-angle line deflectors. These weight-saving fairleads are built of 6061-T6 Hard Lube-anodized aluminum for durability. Smooth surfaces and radiused center holes minimize line wear.
Specifications:
- Length (mm): 48 mm
- Length (in): 1-7/8 in
- Width (mm): 18 mm
- Width (in): 11/16 in
- Weight (g): 28 g
- Weight (oz): 0.99 oz
- Maximum line Ø (mm): 10 mm
- Maximum line Ø (in): 3/8 in
- Fasteners (mm): 6 SH mm
- Fasteners (in): 1/4 SH in
- Maximum working load (kg): 908 kg
- Maximum working load (lb): 2000 lb
- Breaking load (kg): 1816 kg
- Breaking load (lb): 4000 lb
- Height (mm): 28.2 mm
- Height (in): 1-1/8 in
- A (mm): 32 mm
- Center hole Ø (mm): 12 mm
- Center hole Ø (in): 15/32 in
Manufacturer : Harken
Manufacturer Part No : 3274
UPC : 097653271543
