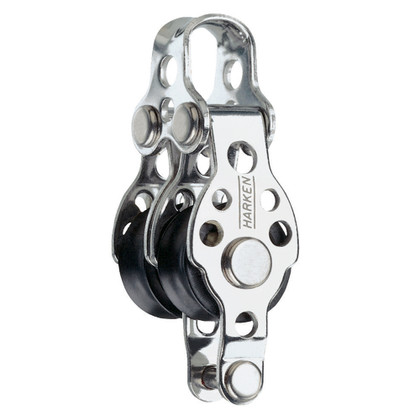

CAD DrawingCAD Drawing 2CAD Drawing 316mm Double Block with Becket
The 16 mm is Harken’s® smallest block. The patented bearing system uses stainless steel balls in a captive grooved race.
Specifications:
- Sheave: 16mm / 5/8in
- Length: 54mm / 2-1/8in
- Weight: 28g / 1oz
- Maximum line: 5mm / 7/32in
- Maximum working load: 204kg/ 450lb
- Breaking load: 544kg / 1200lb
Product : HARKEN 16MM DOUBLE BLOCK W/ BECKET
Manufacturer : Harken
Manufacturer Part No : 407
Product : HARKEN 16MM DOUBLE BLOCK W/ BECKET
