CAD DrawingCAD Drawing 2CAD Drawing 322mm Fiddle Micro Block with V-Jam
Low-friction Micro blocks are compact and lightweight.
Specifications:
- Sheave: 22mm / 7/8in.
- Length: 89mm / 3-1/2in.
- Weight: 57g / 2oz.
- Shackle pin: 5mm/ 3/16in
- Maximum line: 6mm / 1/4in.
- Maximum working load: 159kg / 350lb
- Breaking load: 544kg/ 1200 lb

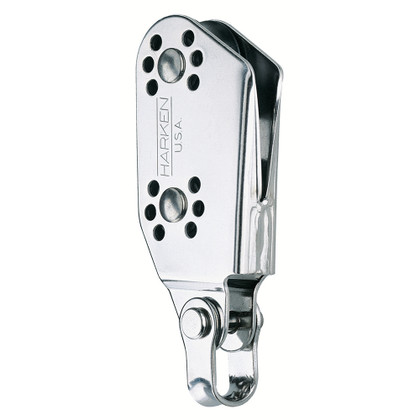

Product : HARKEN 22MM FIDDLE MICRO BLOCK W/ V-JAM
Manufacturer : Harken
Manufacturer Part No : 244
Product : HARKEN 22MM FIDDLE MICRO BLOCK W/ V-JAM
