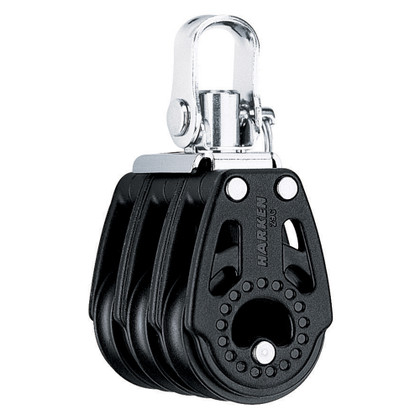

CAD DrawingCAD Drawing 2CAD Drawing 329mm Triple Carbo Air Block with Swivel
Low-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads.
Specifications:
- Sheave: 29mm / 1-1/8in.
- Length: 73mm / 2-7/8in.
- Weight: 74g / 2.6oz
- Shackle pin: 5mm / 3/16in
- Maximum line: 8mm / 5/16in
- Maximum working load: 449kg/ 990lb
- Breaking load: 907kg / 2000lb
Product : HARKEN 29MM TRIPLE CARBO AIR BLOCK W/ SWIVEL
Manufacturer : Harken
Manufacturer Part No : 344
