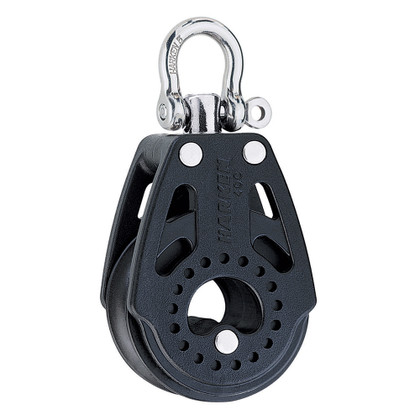

CAD DrawingCAD Drawing 2CAD Drawing 340mm Carbo Air Block with Swivel
Low-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads.
Specifications:
- Sheave: 40mm / 1-9/ 16in
- Length: 86mm / 3-3/8in
- Weight: 44g / 1.6oz
- Shackle pin: 4mm / 5/32in
- Maximum line: 10mm / 3/8in
- Maximum working load: 220kg / 485lb
- Breaking load: 735kg / 1620lb
Product : HARKEN 40MM CARBO AIR BLOCK W/ SWIVEL
Manufacturer : Harken
Manufacturer Part No : 2636
Product : HARKEN 40MM CARBO AIR BLOCK W/ SWIVEL
