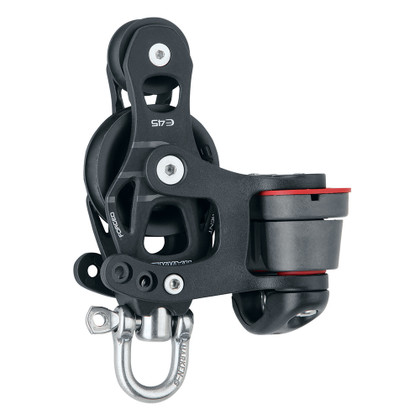

CAD DrawingCAD Drawing 2CAD Drawing 345mm Single Aluminum Element Fiddle Block with Swivel & 150 Cam Cleat
Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.
Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.
Features:
- Sheave Ø (mm): 45 mm
- Sheave Ø (in): 1-3/4 in
- Maximum line Ø (mm): 8 mm
- Maximum line Ø (in): 5/16 in
- Maximum working load (kg): 408 kg
- Maximum working load (lb): 900 lb
Product : HARKEN 45MM SINGLE ELEMENT BLOCK W/ FIDDLE & SWIVEL W/
Manufacturer : Harken
Manufacturer Part No : 6235
Product : HARKEN 45MM SINGLE ELEMENT BLOCK W/ FIDDLE & SWIVEL W/
